CORA - Performance anxiety ear bud.

CORA is a new and completely unique sports performance anxiety ear bud. CORA uses HRV ​biodata to detect stress via the Sympathetic Nervous System and initiates low Hz vibrations to ​stimulate the vagus nerve. Not only does it alleviate performance anxiety it encourages long ​term behavioural change. CORA brings focus and composure to you game you thought you had ​lost.

The Need For New Design

75%

Of Children quit sport by the time they are 16 due to the pressure of performing.

(Sports psychology)

30% - 60%

Of athletes suffer from performance anxiety

(Healthline)

“I... took some pride in ‘not fulfilling my potential,’ in part because I was terrified that if I tried my hardest, the world would learn I didn’t actually have that much potential.”
— John Green, The Anthropocene Reviewed

RESEARCH

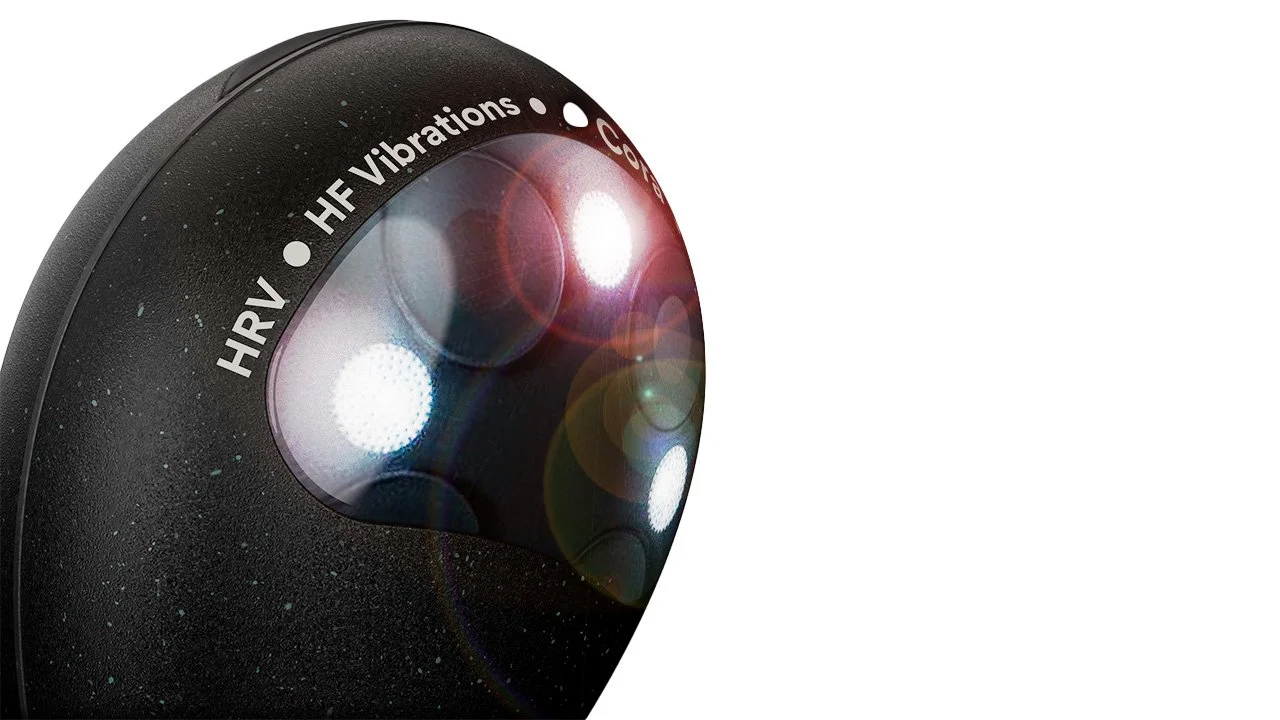

CORA wireless performance anxiety Earbuds

Calming, VN stimulating ​vibrations

Cora Buds Feature Vagus nerve stimulating ​technology (VNST) through 5-10 hz Vibrations.

Heart rate variability is measured through optical ​fiber HR sensor to track your stress and anxiety ​levels.

Enjoy the game you love to play, without the worry ​of performance anxiety symptoms and begin your ​journey to a anxiety free career.

Name of product.png
Pastel Gradient Modern Startup Pitch Deck Presentation (1).png

Ergonomic

*

User Friendly

*

Ergonomic * User Friendly *

Struggling to deal with pressure during ​an event?

The additional wrist attachment and the ​detachable buds makes sure that Cora ​can be by your side every step of the way

  • Ergonomic.

  • Personalization.

  • User Friendly.

  • Easily Accessible.

ear finalala.259-min.png

Technical Specifics

    • CORA uses a 10mm haptic motor

    • Initiates during stressful situations in a breathing tempo of your choice

    • 5hz vibrations stimulate the vagus nerve without getiing on YOUR nerves

    • PPG (Photoplethysmogram) sensor calculates your HRV to detect stress

    • With sports-specific parameters, in ear measurments are done without interfering ​with the current activity

    • Ergonomic form & Design ensures a stable fit during physicl exercise

    • Ergonomic Ear bud angle is perfect for stability, fit and seal and tested to be ​designed with user preference in mind

    • Detachable ear buds offer a secondary solution to performance anxiety, can be ​worn on the wrist

    • Plenty of resistance to water, with IPX7 water resistance you can use CORA up to ​1 meter

    Bud Specs

    • Length: 24.4mm

    • Width: 18.6mm

    • Height: 12.7mm

    • Weight: 7.2g

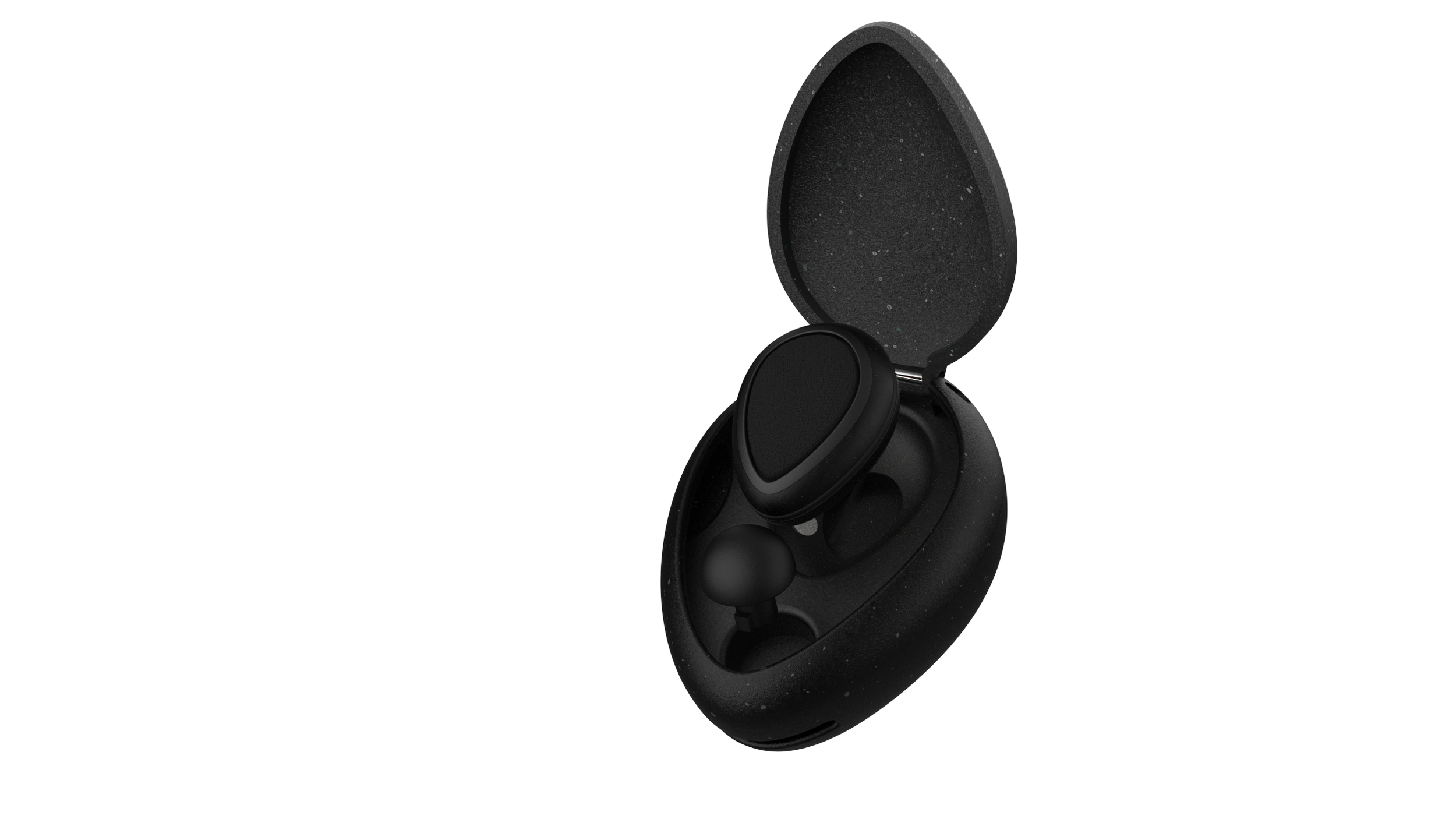

    Charging Case Specs

    • Lenght: 60.7mm

    • Width: 46.6mm

    • Height: 30mm

    • Weight: 28g

    • WH-BLE102 Bluetooth module. Dual compatibility with Android and Iphone

    • Connect to smart device instantly by placing CORA in the charging case

    • Connect to interface seamlessly

  • Estimate Power Needed

    • Bluetooth Module: 10-20Mw

    • Haptic Motor: 10-100Mw

    • PPG Sensor: 1-10Mw

    • Microcontroller: 10-50Mw

    • Total Average: 95Mw

    • Battery Needed = 8 hours battery

    Battery Life

    95 x 8 = 760mw

    Battery capacity (MaH) = 760mwh / 3.7mwh = 205.4mwh

    • Lithium Ion / lithum polymer lasts up to 8 hours with 2 hour charge time

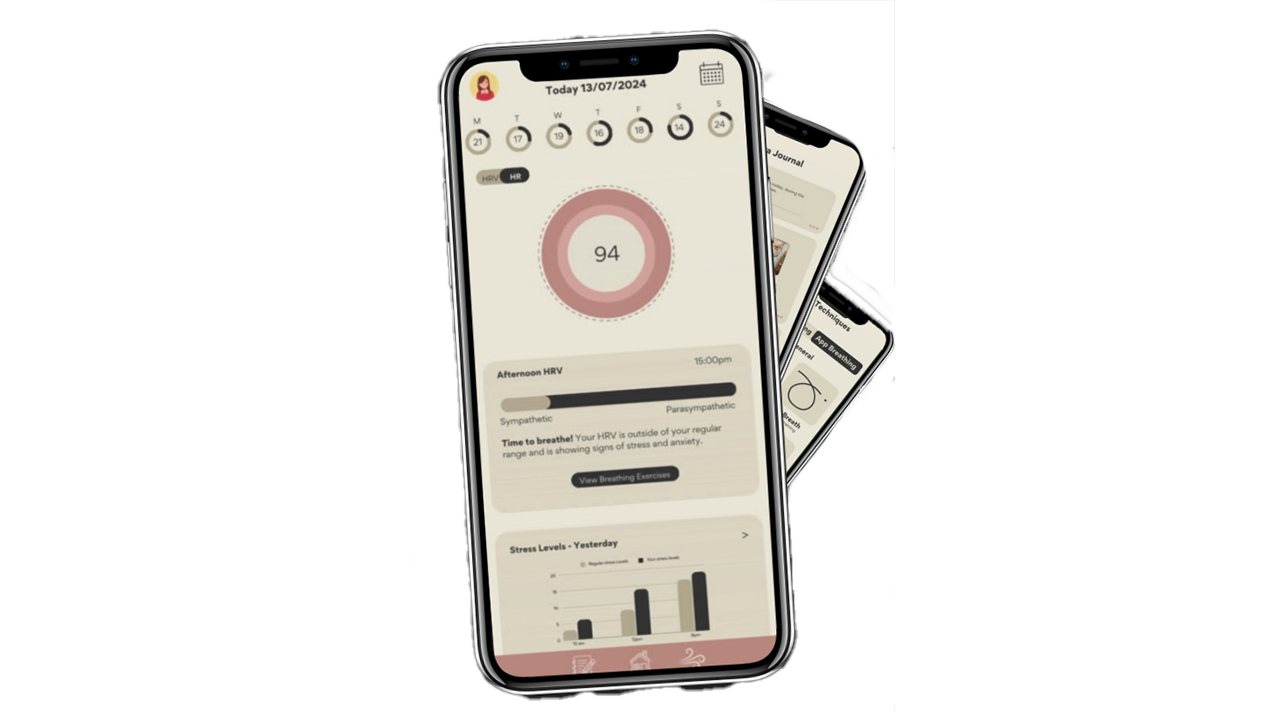

    • Controlled purely through the app interface

    • One CORA ear bud

    • One CORA charging case

    • 4 different detachable size rubber ear bud tips (S,M,L,XL)

    • One team sport rope band
